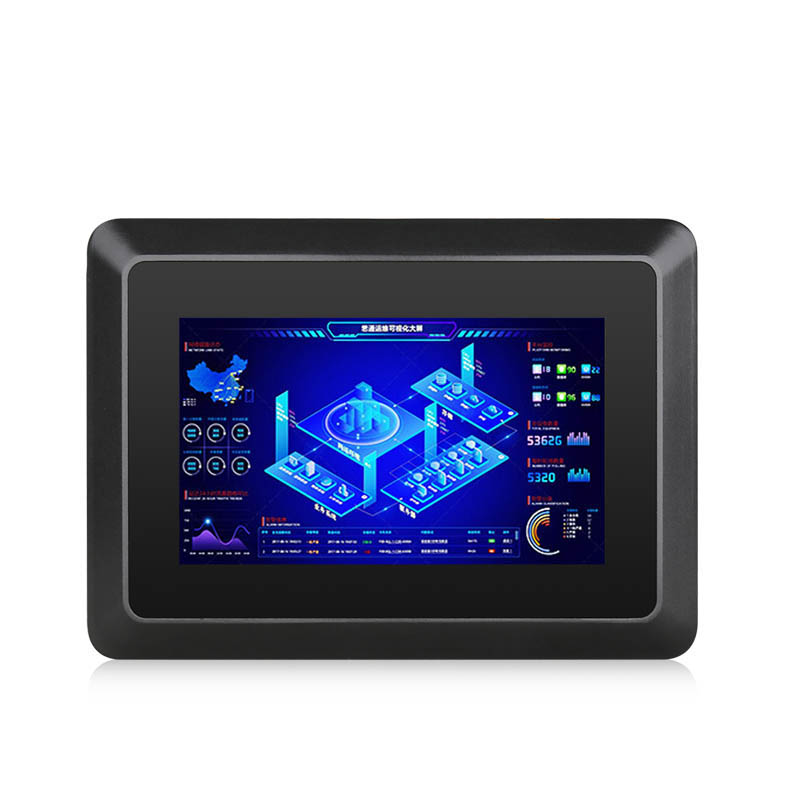

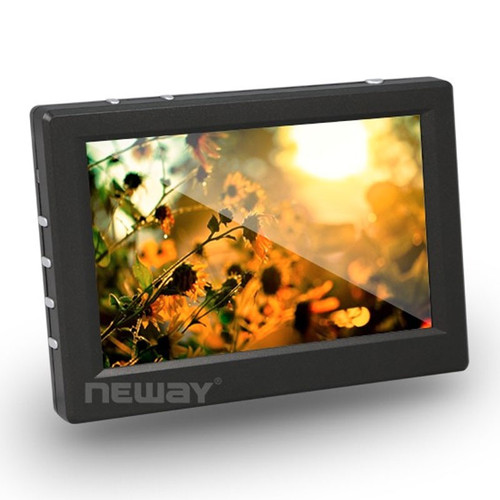

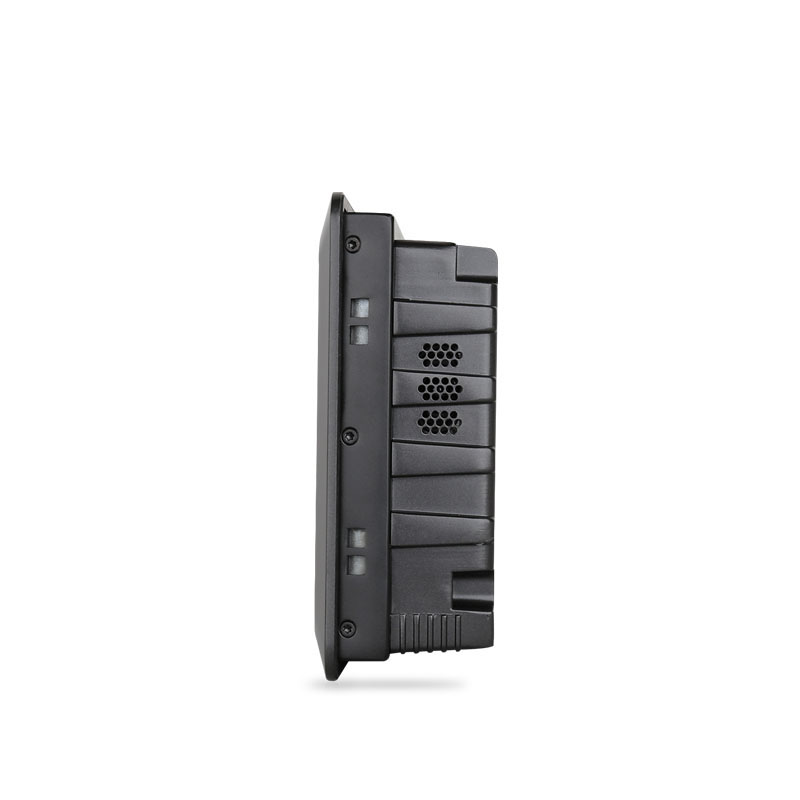

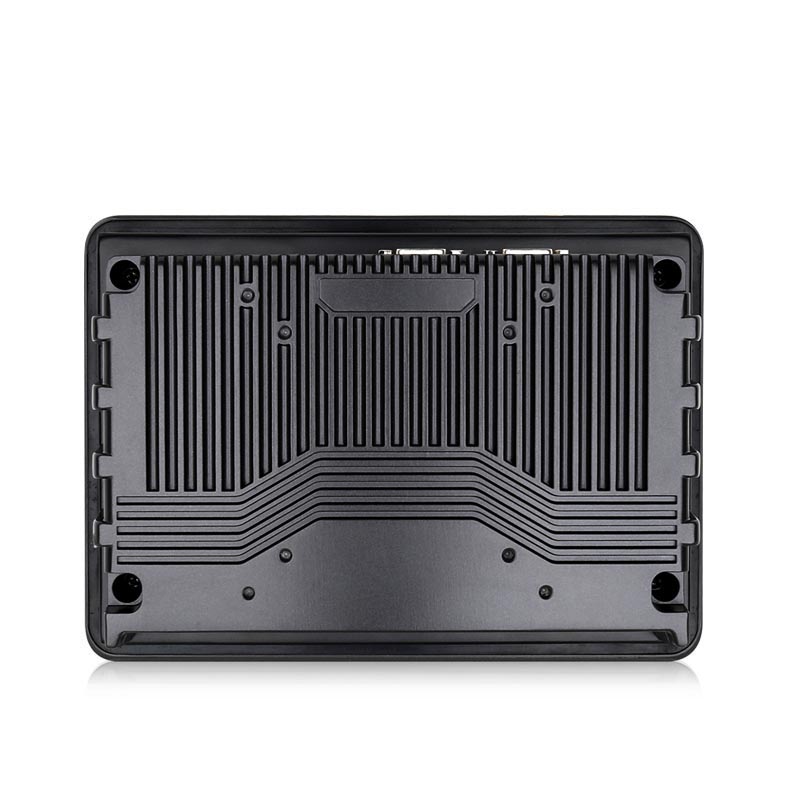

Small Size Industrial Touch Screen Monitors
Monitor Industri 7": Model: TPC070-M-QD
Monitor Industri 8": Model: TPC080-M-QD
As the professional manufacturer, we would like to provide you high quality Small LCD Touch Screen. 7-inch and 8-inch small-size monitors with industrial-grade quality provide ideal touch display solutions for custom projects. These small LCD monitors are designed to fit anywhere and are made from an aluminum alloy so they're tough enough to take a beating.
Ciri-ciri Produk
● Pilihan panel skrin LCD 7" dan 8".
● 7-inch: 1024x600 native resolution, 16x9 Aspect Ratio
● 8-inci: peleraian asli 1024x768, Nisbah Aspek 4x3
● Sokongan skrin sentuh rintangan berbilang titik dan kapasitif 4/5 pendawaian.
● Menyokong input voltan lebar: 12V DC ~ 24V DC / 9V DC ~ 36V DC.
● Lubang pelekap VESA 75/100mm.
● RoHS, FCC, Pensijilan CE.
● Waranti 3 tahun (36 bulan).
| Parameter skrin | Saiz Skrin | 7 inci / 1024*600 / 16:9 |
| 8 inci / 1024*768 / 4:3 | ||
| HDMI | HDMI*1 | |
| DVI | DVI*1 | |
| Power Interface | DC 12~24V | |
| Extended display | VGA*1, sokongan untuk paparan dwi segerak dan paparan pembezaan | |
| Antara muka rangkaian | RJ45*1 | |
| Audio Interface | Audio I/O*1 | |
| Sambungan I/O | Sokongan penyesuaian | |
| Parameter Paparan | Color | 16.7M |
| Jarak titik | 0.264mm | |
| Panel skrin | Skrin kawalan industri | |
| Berbeza | 7" dengan 500:1 / 8" dengan 800:1 | |
| Kecerahan paparan | 300cd/m2 (high brightness customizable) | |
| Sudut pandangan | (H)150 (V) 150, 178° wide viewing angle is customizable. | |
| Jenis lampu latar | Skrin lampu belakang LED Sepanjang Hayat ≥ 50000j | |
| Masa tindak balas skala kelabu | 6.5ms | |
| Sentuh Pilihan | Resistif/Kapasitif/Kawalan Tetikus | |
| Kaedah pemasangan | Embedded, desktop, wall-mounted, VESA | |
| Parameter Lain | kuasa | 12V-5A Professional External Power Adapter |
| Penggunaan kuasa | ≤60W | |
| Suhu kerja | -10°C～60°C | |
| Suhu penyimpanan | -20°C～70°C | |
| Kelembapan relatif | 0%-65% (tanpa pemeluwapan) | |
| bahan | Bahan aloi Aluminium penuh | |
| Polisi Waranti | Waranti tiga tahun | |
| Perlindungan penarafan IP | Panel hadapan IP65 kalis habuk dan kalis air | |
| Packing list | Monitor industri / Aksesori Pemasangan / Kord Kuasa / Penyesuai Kuasa / CD Pemacu / Manual / Kad Waranti |
